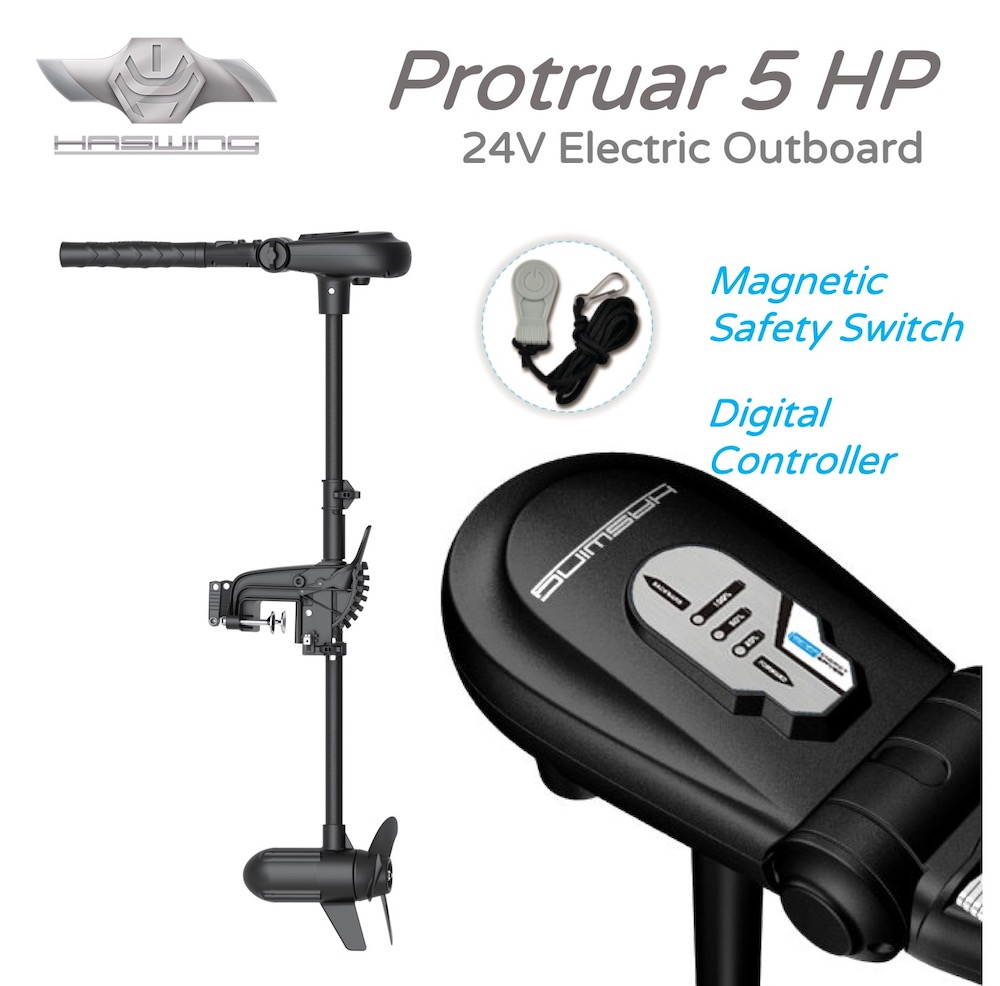

HASWING Protruar 5HP Electric Outboard 24V with Digimax Controller



Qty Description Price
HASWING Protruar 5HP Electric Outboard 24V with Digimax Controller
Code:MD1245
OUT OF STOCK

HASWING Protruar 5HP Electric Outboard 24V with Digimax Controller has the thrust equivalent to 6HP petrol outboards.  Suitable for freshwater and saltwater use on boats up to 6.5m.

Requires 24V battery.

Includes warranty and UK after-sales service support.

Key Features

  • Producing equivalent thrust to a 6HP petrol engine without the pollution, noise and regular service needs.
  • Builtin heavy duty brushless motor ensures efficient power conversion and zero maintenance.
  • Digimax digital controller maximises runtime in water and conserves battery use at any power setting.
  • Enables higher power conversion efficiency than trolling motors.
  • Digital controller provides smooth stepless forward and reverse speeds, and as a safety feature prevents false starts when initially connected to battery.
  • Durable contoured rubber handle provides a comfortable grip.
  • Telescopic handle extends for comfortable reach up to 400mm.
  • Handle swivels vertically through 180 degrees.
  • Durable cast aluminium shaft, 35″ length, and weighs only 7.7kg.
  • Secure the outboard with locking padlocks to clamp screws while fitted to transom.
  • Supplied with sacrificial anodes (and spares) suitable for both salt and fresh water use.
  • An electronic 3 level LED battery indicator to monitor reserve power.
  • Integral motor fin prevents prop and motor from underwater impact.
  • Waterproof rating to IP67
  • 1 year limited warranty
  • CE Certification.

Operation

  • Twist the handle to achieve smooth stepless forward and reverse speeds.
  • Immersion height adjusted with depth collar, enabling use in variable water depths.
  • Battery level monitored by 3 level LED indicators.
  • Steering lock prevents free wheeling. When lock is released can steer through 360°.
  • Tilt bracket allows the motor to tilt through 10 levels.
  • User manual and propeller fixing kit included.

Specification

  • Shaft Power: 5HP
  • Comparable petrol outboard: 6HP
  • Max Battery Voltage: 24V
  • Waterproof to IP67
  • Shaft : Cast Aluminium
  • Shaft Length: 35inch / 900mm
  • Propeller: 3 blade, 9.3 inch (Diameter)
  • Prop Speed Underwater: 1350 RPM at full power.
  • Sound Level: < 50db
  • Weight: 7.7 kg
  • Dimensions: Length 119cm.
  • Propellor/Motor: 25cm x 21cm
  • Mounting Bracket : 21cm x 22cm
  • Motor Head: 24cm x 13cm

This an power beast of an engine without the noise of conventional petrol engine, this is one of the quietist eletric engline available due to the brushless technology!!!
